Grumman HU-16B Albatross

The SA-16A Albatross was designed for the U.S. Navy in 1944 as a replacement for the Grumman JRF Goose.  Initial testing in 1947 led not only to Navy orders, but to orders from the U.S. Air Force and Coast Guard as well.  All three services primarily used the aircraft for search-and-rescue duties as well as general maritime patrol.  In the early 1960s they were redesignated as HU-16s as a part of the joint Air Force-Navy aircraft designation system.  The HU-16B is an updated version of Albatross with a longer wingspan and larger flight control surfaces. Many of the HU-16As were modified into HU-16Bs. The Albatross served until well into the 1970s.  Some can still be found flying in private hands.

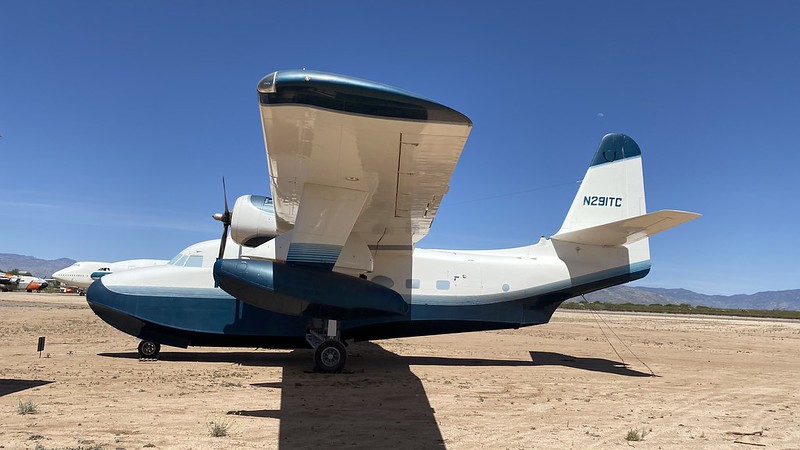

This aircraft was heavily modified for civil use as a recreational aircraft. One of the modifications was two pods mounted to the wing pylons each containing a Polaris SL650 Jet Ski. After landing in the water, the jet skis could be lowered into the water for use.

Wingspan

96 ft 8 in.

Length

62 ft 10 in.

Height

25 ft 10 in.

Weight

37,500 lbs (loaded)

Maximum Speed

236 mph

Service Ceiling

21,500 ft

Range

2,850 miles

Engines

Two Wright R-1820-76A radials with 1,425 horsepower each

Crew

4-6, up to 10 passengers

Manufacturer
Grumman

Markings
John Gasho, Sr., Tucson, Arizona, 2021

Designation
HU-16B

Registration
N291TC

Serial Number
51-5291
